TL;DR
- Most Java modernization failures begin long before the first code change because teams understand dependencies, but not the business decisions embedded inside them. Recovering architectural intent first prevents migrations from preserving syntax while silently changing application behavior.
- Passing a framework upgrade doesn’t prove the application is ready for production. Java version upgrades, Jakarta namespace changes, and automated rewrite tools reduce manual work, but every transactional assumption, persistence rule, and security flow still needs validation against production behavior.
- Large modernization programs break when parallel teams make different architectural decisions about the same system. A shared engineering baseline, backed by living specifications and governed execution, keeps independent refactoring efforts converging toward one architecture instead of creating competing implementations.
- Extracting services without preserving transactional boundaries creates failures that don’t appear in compilation or unit tests. Payment flows, inventory reservation, shared utilities, and validation chains must migrate together with the business rules that give them meaning, not merely with the surrounding classes.
- Migration progress isn’t measured by how many classes were converted or services were deployed. The stronger indicators are architectural consistency, dependency health, traceable review decisions, and regression evidence proving the modernized system behaves exactly as the original where it matters.
Understanding Java Modernization
Java modernization means restructuring an existing Java application, or the platform it runs on, so the system stays maintainable, integrable, and secure without discarding the business logic already proven in production. That covers a wide range: moving off end-of-life JDK builds, replacing deprecated Java EE APIs with Jakarta EE equivalents, decomposing a monolith into services, or replatforming a Struts application onto Spring Boot. Java itself isn’t going anywhere. Over 60% of enterprise developers report their primary applications run on Java 17 or newer as of 2025, and Java 21 has already overtaken Java 17 as the dominant production version, according to language-adoption tracking cited in a 2026 review of JDK release cadence. The problem enterprises face isn’t a dying language. It’s fifteen years of business rules, framework conventions, and integration shortcuts sitting inside codebases nobody fully understands anymore.
That’s why modernization work has moved away from pure JDK upgrades and toward architecture recovery. Gartner’s guidance on continuous modernization frames rip-and-replace migrations as costly and hard to reverse once underway, compared with treating modernization as an ongoing practice tied to business value rather than a single cutover event. Practitioners run into the sharper version of this problem constantly. In one open GitHub pull request against the OpenRewrite migration tooling, a contributor found that an automated Jakarta EE recipe silently failed to bump a dependency version because of a renamed configuration parameter, a defect that had shipped unnoticed through multiple releases. Automated tooling helps. It doesn’t replace verification.
This article gives Java engineering teams a framework for deciding where architecture recovery has to come before code changes, where framework and dependency risk concentrates, and how governance holds a long-running program together. One example threads through it: a monolithic order-processing module that needs to become several services without losing the validation and transactional behavior nobody wrote down.
Legacy Java Architecture Assessment Before Any Code Changes
A call graph shows you the shape of a system. It doesn’t tell you which of those calls exist because a regulator required them five years ago and which ones are dead weight nobody had the nerve to delete.

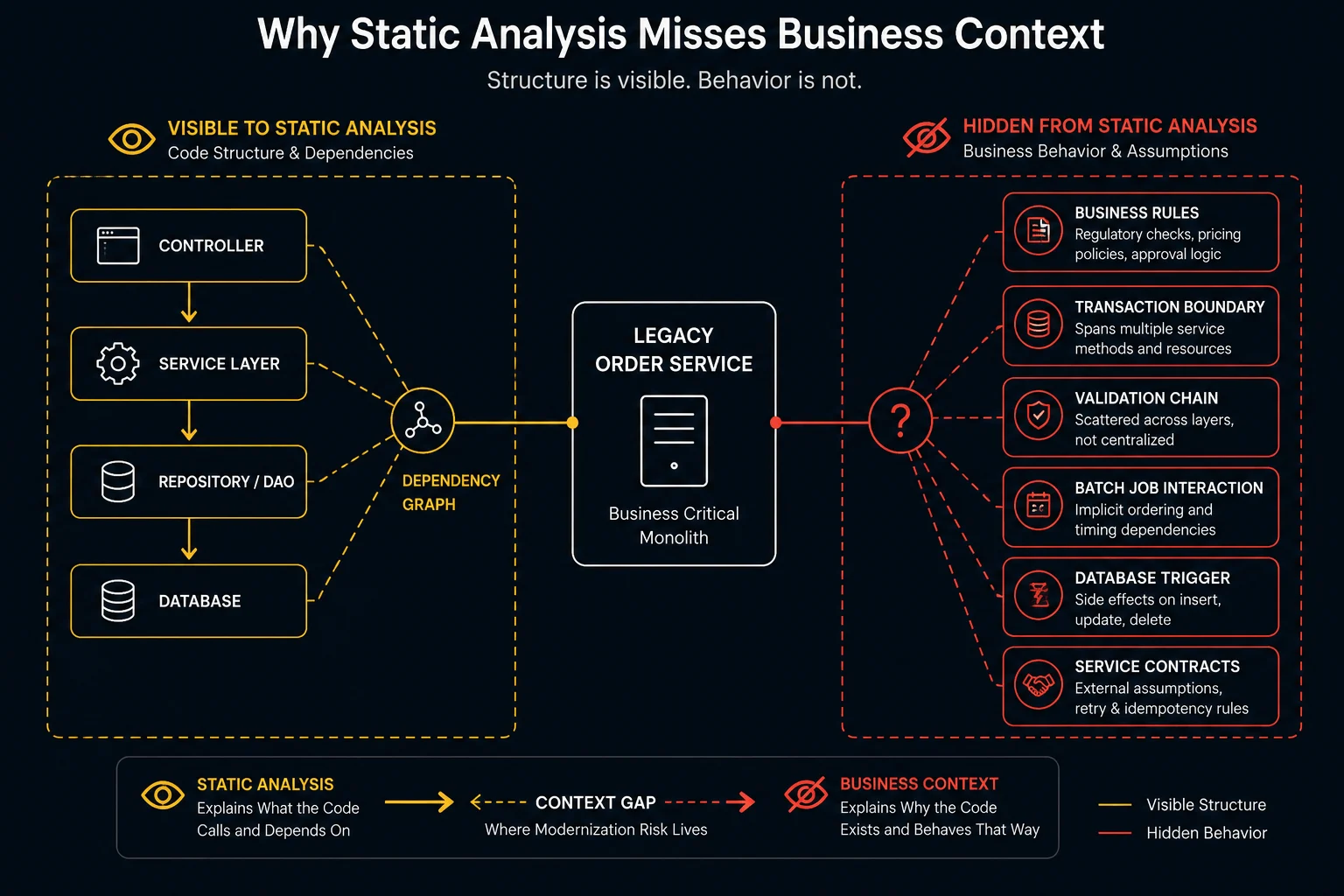

Why Static Analysis Alone Misses Business Context
Dependency graphs, package metrics, and cyclomatic complexity scores describe structure. None of them explain behavior. A service that calls three downstream systems on every request might be doing that because of a genuine business requirement, or because a developer in 2014 copy-pasted a retry pattern without understanding why the original author added it. Static tools can’t tell the difference; only someone who traces the execution path against the business rule can.
Framework conventions compound the problem. A Spring @Transactional boundary that spans four service methods encodes an assumption about atomicity that isn’t visible from any single class file. Hidden service contracts and implicit ordering requirements between batch jobs live outside what a dependency graph can surface. Validation logic scattered across controller and service layers hides there too, along with whatever a database trigger does silently on insert. ForgeScore, Forge’s eight-dimension engineering assessment, treats this as a discovery layer rather than a code-quality report: it scores security exposure, architecture health, test coverage, dependency complexity, technical debt, compliance readiness, performance, and AI readiness together, so a team sees where business logic is likely buried before they touch a single class.
The image shows ForgeScore’s engineering assessment, which evaluates a codebase across eight dimensions instead of relying only on static code metrics. Notice how it combines architecture health, dependency complexity, technical debt, compliance, performance, and AI readiness into a single assessment, giving teams a broader view of modernization risk before implementation begins.
Look at the hidden annotations before following the dependency path because they explain why structurally correct migrations still fail. The transaction boundary is the easiest element to underestimate since no single class defines its complete business effect.
Building A Shared Engineering Baseline Before Refactoring Starts
Two architects reading the same fifteen-year-old order-processing module will draw two different migration plans if neither has a documented record of what the system is supposed to do. That’s how competing service boundaries end up in production: one team extracts inventory logic assuming it’s independent of pricing, another team assumes the opposite, and the conflict surfaces during integration testing instead of during planning.
A shared baseline fixes the sequencing problem, not the technical one. Forge documents system intent through Living Specifications, versioned artifacts that capture requirements and architecture decisions, along with the constraints behind them, so they stay available through execution instead of existing only inside a design meeting nobody recorded. Once that baseline exists, a Work Order for extracting the pricing engine and a Work Order for extracting inventory reference the same document, which is what keeps two teams from building incompatible assumptions into parallel branches of the same monolith.

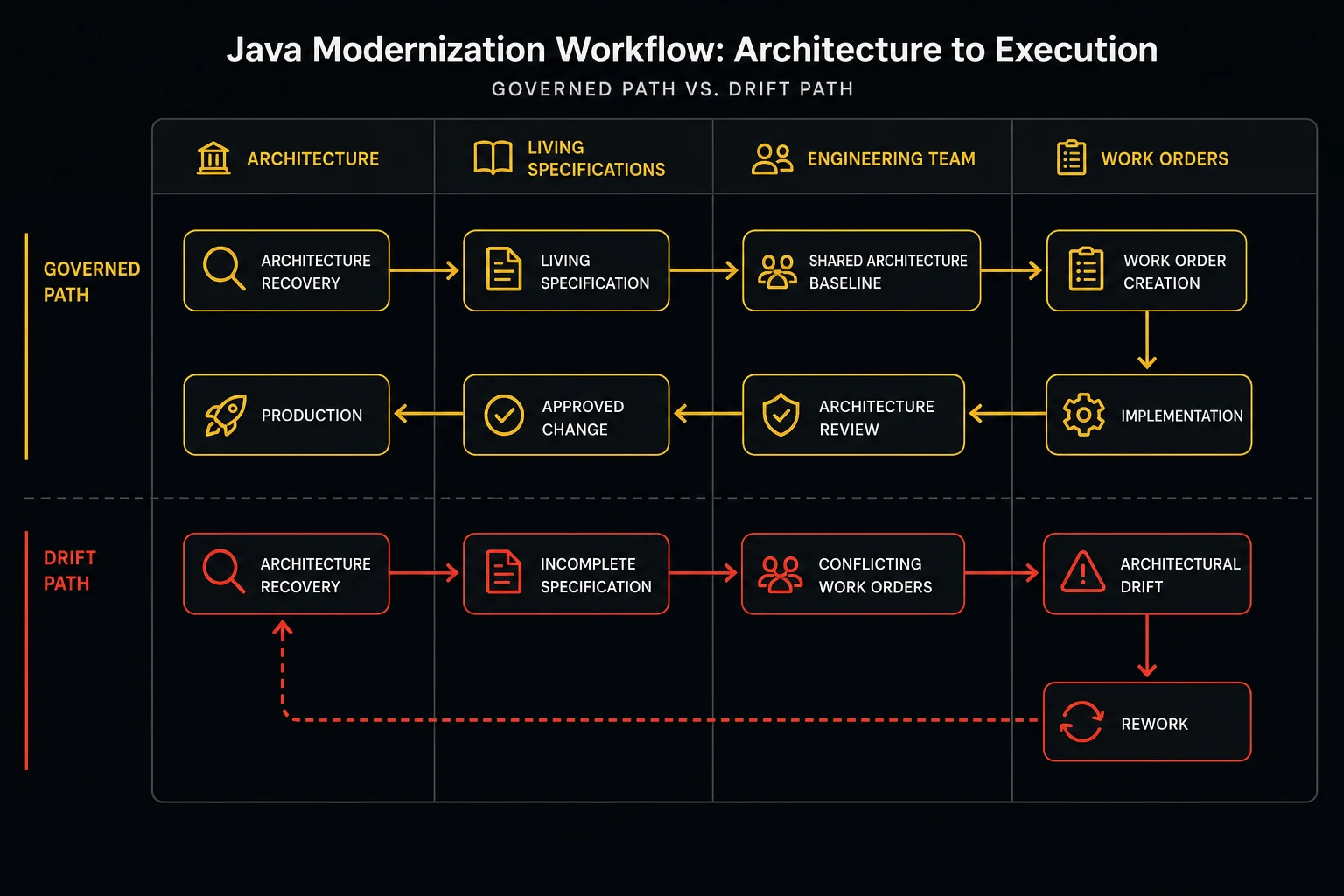

Follow the gold path first because every implementation decision originates from the shared specification rather than individual interpretation. The red branch is easy to misread as a coding problem when it begins much earlier with incomplete architectural context.
Where Java Modernization Projects Accumulate Technical Risk
Nobody schedules a maintenance window for the moment a transitive dependency stops resolving. It happens mid-sprint, usually right after someone bumped a parent POM version to fix an unrelated CVE.
Framework Upgrades Without Dependency Validation
Spring, Hibernate, Jakarta EE, and JVM version changes rarely fail in isolation. Spring Boot 3 requires Java 17 as a floor and replaces the javax.* namespace with jakarta.* across the entire dependency tree, which means every library your application pulls in, directly or transitively, needs a Jakarta-compatible release before the build even compiles. Hibernate 6 drops support for JPA’s legacy criteria API in ways that surface at runtime rather than compile time. Authentication libraries built against Spring Security 5 conventions frequently break silently under Spring Security 6’s changed filter chain configuration, producing 403 responses with no obvious cause in the logs.
Two tools illustrate how much of this work is now mechanical rather than manual. The OpenRewrite project maintains automated recipes for exactly this kind of migration, and running one against a Maven build looks like this:
<plugin>
<groupId>org.openrewrite.maven</groupId>
<artifactId>rewrite-maven-plugin</artifactId>
<version>6.44.0</version>
<configuration>
<activeRecipes>
<recipe>org.openrewrite.java.spring.boot3.UpgradeSpringBoot_3_5</recipe>
</activeRecipes>
</configuration>
<dependencies>
<dependency>
<groupId>org.openrewrite.recipe</groupId>
<artifactId>rewrite-spring</artifactId>
<version>6.35.0</version>
</dependency>
</dependencies>
</plugin>The activeRecipes block names the specific upgrade path (Spring Boot 3.5 here), and the rewrite-spring dependency supplies the recipe library itself; running mvn rewrite:run afterward rewrites imports, config keys, deprecated API calls, and the XML bean definitions that still reference them, across the codebase in one pass, per OpenRewrite’s own migration documentation. For applications still carrying raw javax.* package references outside Spring’s own footprint, servlet filters, JSPs, or vendor-specific EE APIs, the Apache Software Foundation maintains a companion command-line tool built for exactly that namespace rename, documented in its own project README:
java -jar jakartaee-migration-*-shaded.jar webapp.war webapp.migrated.warThat command reads a WAR file, rewrites every javax.* reference the Jakarta EE 9 specification relocated, in class bytecode, string constants, configuration files, and JSPs alike, and produces a converted archive at the destination path. Neither tool replaces the validation step. Both rewrite syntax faster than any team could by hand, but a passing build after either recipe runs confirms the code compiles, not that a JPA @ManyToOne mapping still lazy-loads the way the business logic assumed it would.
Architectural Drift During Incremental Refactoring
Splitting a monolith one service at a time invites a specific failure mode: two engineering teams working on adjacent boundaries make locally reasonable decisions that turn out to be globally incompatible. One team introduces an event-driven pattern for order status updates. Another, extracting the shipping module three sprints later, wires in a synchronous REST call because nobody told them the event pattern already existed. Six months in, the service mesh has two competing integration styles and no one remembers why.
Governed Work Orders exist to prevent exactly this. Rather than letting each extraction proceed from a fresh AI prompt or an engineer’s personal judgment, a Work Order encodes the architectural pattern a given extraction has to follow, references the Living Specification it traces back to, and produces a log entry when the work clears review. That turns architectural consistency into something checked at the point of generation instead of something caught, expensively, during a later audit.
A governed work order queue synced to an external tracker, showing epics with acceptance criteria, dependencies, and story point estimates attached automatically. Pay attention to the dependency links between cards, since those are what a coding agent needs to avoid generating a change that conflicts with unmerged work elsewhere.
AI Code Generation Without Persistent System Context
Coding assistants are good at producing plausible Java in isolation. They’re bad at remembering, three sessions later, that the team already decided against optimistic locking on the inventory table because of a race condition discovered in production two years ago. Every fresh session starts from the code in front of the model and whatever fits in the prompt, not from the accumulated judgment calls a team made over a decade.
Regenerated code diverges from house architecture for exactly this reason: context gets lost between sessions, and each generation reflects generic best practice instead of the specific constraints this particular system has. Forge’s persistent context model addresses the gap by carrying architecture decisions, compliance requirements, and prior Work Orders forward into every new agent session, so a request to extract the pricing service inherits the locking decision instead of reintroducing the bug that decision was made to avoid.
Converting Legacy Java Systems Without Losing Business Behavior
Class structure is the easy part to get right. Transactional behavior, the part that loses money when it breaks, is the part that hides in the seams between classes.
Preserving Business Logic During Service Extraction
Take a monolithic order-processing module handling checkout and inventory reservation, with payment capture folded into the same Spring @Transactional boundary. An engineer extracting inventory reservation into its own service, focused purely on class structure, will move the reservation logic cleanly and miss that the original transaction guaranteed inventory and payment succeeded or failed together. Split across two services without a compensating transaction pattern, and a payment can now succeed against inventory that was never reserved at all, a defect that surfaces as a customer complaint weeks later, not as a failed test during development.
Shared utility classes create a quieter version of the same risk. A PriceCalculator used by both the checkout flow and a nightly batch reconciliation job carries assumptions, rounding mode, currency handling, and tax timing that both callers depend on implicitly. Moving it into the new checkout service without auditing every caller breaks the batch job in a way nobody notices until month-end reconciliation stops balancing.
Living Specifications Become The Reference During Migration
Architecture documentation drifts out of date almost immediately. A design doc written before sprint one describes intent; by sprint three, three implementation decisions have deviated from it, and nobody has gone back to update the diagram, because updating diagrams isn’t anyone’s job once the sprint starts moving.
Living Specifications are built to stay current through exactly that pressure. Because they’re versioned and machine-readable, an architect and a developer, plus any AI coding agent working the same extraction, all reference the identical, current document instead of three slightly different mental models, which is what keeps a spec functioning as a shared reference rather than a historical record of what someone once intended.
Governing Java Modernization Across Long-Running Programs
A migration percentage looks like progress on a slide. It says nothing about whether the 40% already converted will survive a load test.
Measuring Progress Beyond Migration Percentages
Counting converted classes or upgraded modules produces a number that moves steadily upward regardless of whether the work underneath it is sound. A module can show 100% migration completion and still fail in production if the extraction introduced a synchronous call where the original design relied on async batching, or if test coverage on the converted path sits near zero.
Metrics that track modernization health instead of migration volume:
- Architectural consistency: how many extracted services follow the integration pattern the Living Specification defines, versus how many improvised a different one.
- Reviewability: what fraction of generated Work Orders cleared review without requiring a second pass from an architect.
- Dependency health: how many transitive dependencies still resolve to versions with open, unpatched CVEs after a given migration phase.
- Production readiness: whether regression coverage on converted modules meets the threshold the team set before extraction began, not after.
None of these numbers fit neatly on a single slide, and that’s roughly the point.
Auditable Modernization Decisions Across Engineering Teams
Regulated industries need more than a Git log to answer an auditor’s question about why a specific architectural decision was made. A commit history shows what changed. It doesn’t show who approved the change, against what compliance checklist, or whether a security scan ran before the change reached a shared branch.
Documented Work Orders close that gap by design. A Work Order for a Java modernization mission reads something like the structure below, encoding the gates a piece of extracted code has to clear before it’s considered done:
| # Forge Work Order: OrderProcessing.reserveInventory → inventory-service intent: Extract inventory reservation from monolithic OrderProcessor preserve: – Atomic reservation + payment capture (compensating transaction required) – Currency rounding mode matching PriceCalculator.ROUND_HALF_EVEN gates: – step: architecture_review requires: living_spec_approved reviewer: lead_architect – step: dependency_scan requires: architecture_review_passed blocks_on: CVE_severity > MEDIUM – step: regression_validation requires: dependency_scan_passed dataset: order_transactions_2025Q4.csv pass_threshold: 100% – step: deploy_canary requires: regression_validation_passed traffic_pct: 5 |
That structure mirrors Forge’s documented Work Order model, where a Security Agent checks each generated artifact and a named human signs off before the next stage runs. Every gate leaves an entry: a timestamp, an owner, and a pass or fail result, which is the record regulators ask for when they show up.

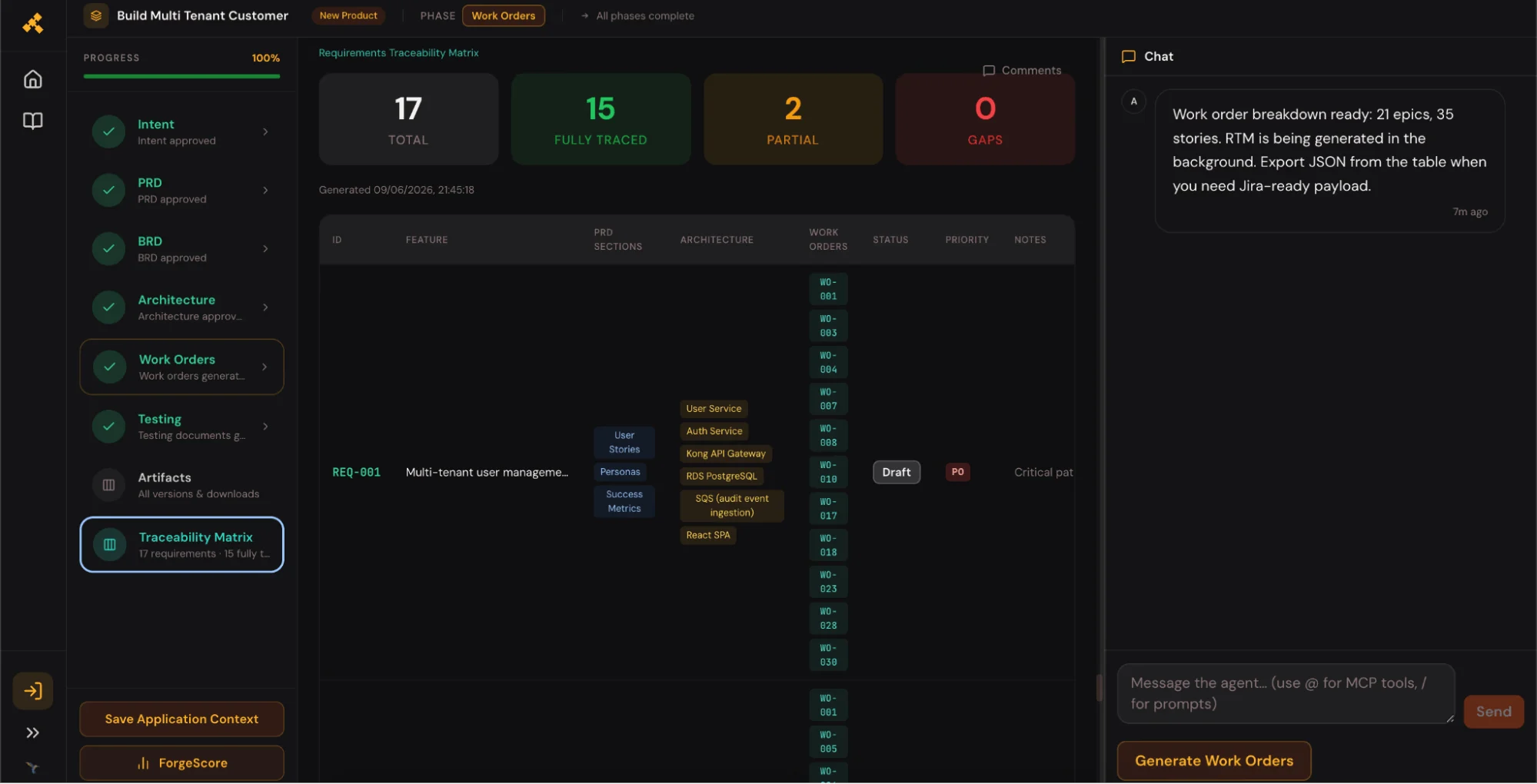

A traceability matrix view linking approved requirements to architecture decisions, Work Orders, and implementation artifacts, with status indicators showing which requirements are fully traced versus partially traced. Notice the partially-traced rows specifically; those flag requirements whose implementation hasn’t been verified yet, not requirements that failed. Selecting A Java Modernization Strategy That Matches System Constraints
Not every module in a fifteen-year-old estate deserves the same treatment. Pretending otherwise is how modernization budgets run out before the hard applications ever get touched.
Monolith Refactoring Versus Incremental Service Extraction
Refactoring a monolith in place, tightening module boundaries, removing shared mutable state, separating business logic from framework code, without splitting it into separate deployable services, carries lower deployment risk because there’s still one thing to roll back if something breaks. It also caps the upside: the application still deploys as a unit, still scales as a unit, and still requires a full regression pass for changes anywhere in the codebase.
Incremental service extraction spreads risk differently. Each extracted service can deploy, scale, and roll back independently, which shrinks the blast radius of any single change. That independence costs testing effort: every extraction needs contract tests against the services it still talks to, and rollback now means coordinating state across two systems instead of one. Organizational readiness decides which approach fits. A team without established patterns for distributed tracing, service-to-service authentication, contract testing, and coordinated rollback will spend the first several extractions building that infrastructure rather than shipping business value, a cost worth planning for rather than discovering mid-program.
When Code Conversion Should Wait Behind Architecture Recovery
Converting code before architectural understanding is complete produces a specific kind of debt: correctly translated syntax sitting on top of an incorrectly understood system. A team that starts converting a payment module to Java 21 records without first mapping every caller of the legacy mutable value objects will spend more time later untangling accidental behavior changes than they saved by starting early.
Forge’s modernization workflow treats this as sequencing rather than an additional planning exercise: codebase assessment and dependency mapping run before any Work Order authorizes implementation, which means the architecture recovery isn’t a phase a team can skip to hit a deadline; it’s the input the rest of the pipeline requires to run at all.

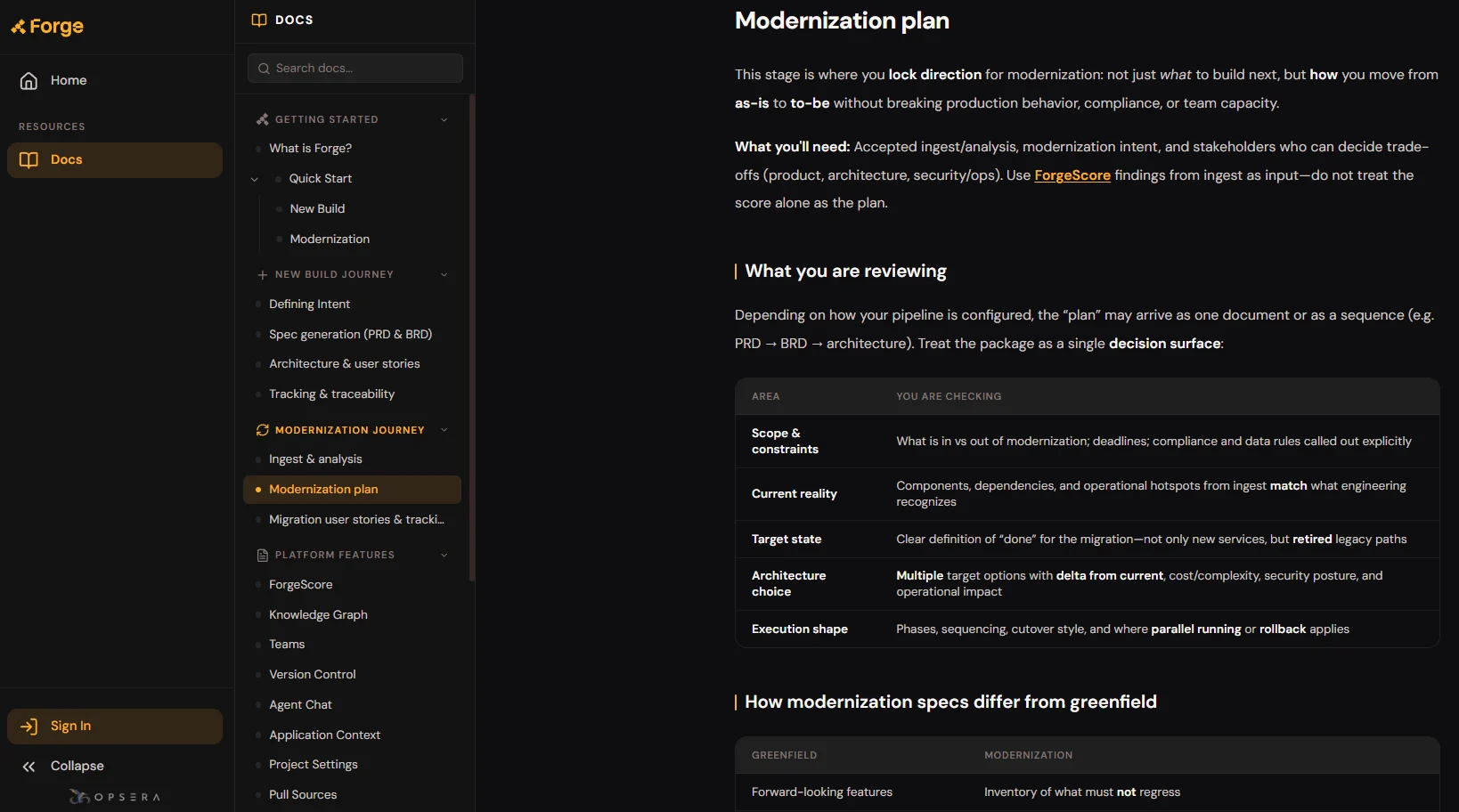

The image shows Forge’s modernization planning stage, where teams review migration scope, current dependencies, target architecture, execution phases, and rollback strategy before implementation begins. Notice how the plan validates architectural decisions before Work Orders move into execution, helping prevent code conversion that doesn’t reflect the system’s intended behavior.

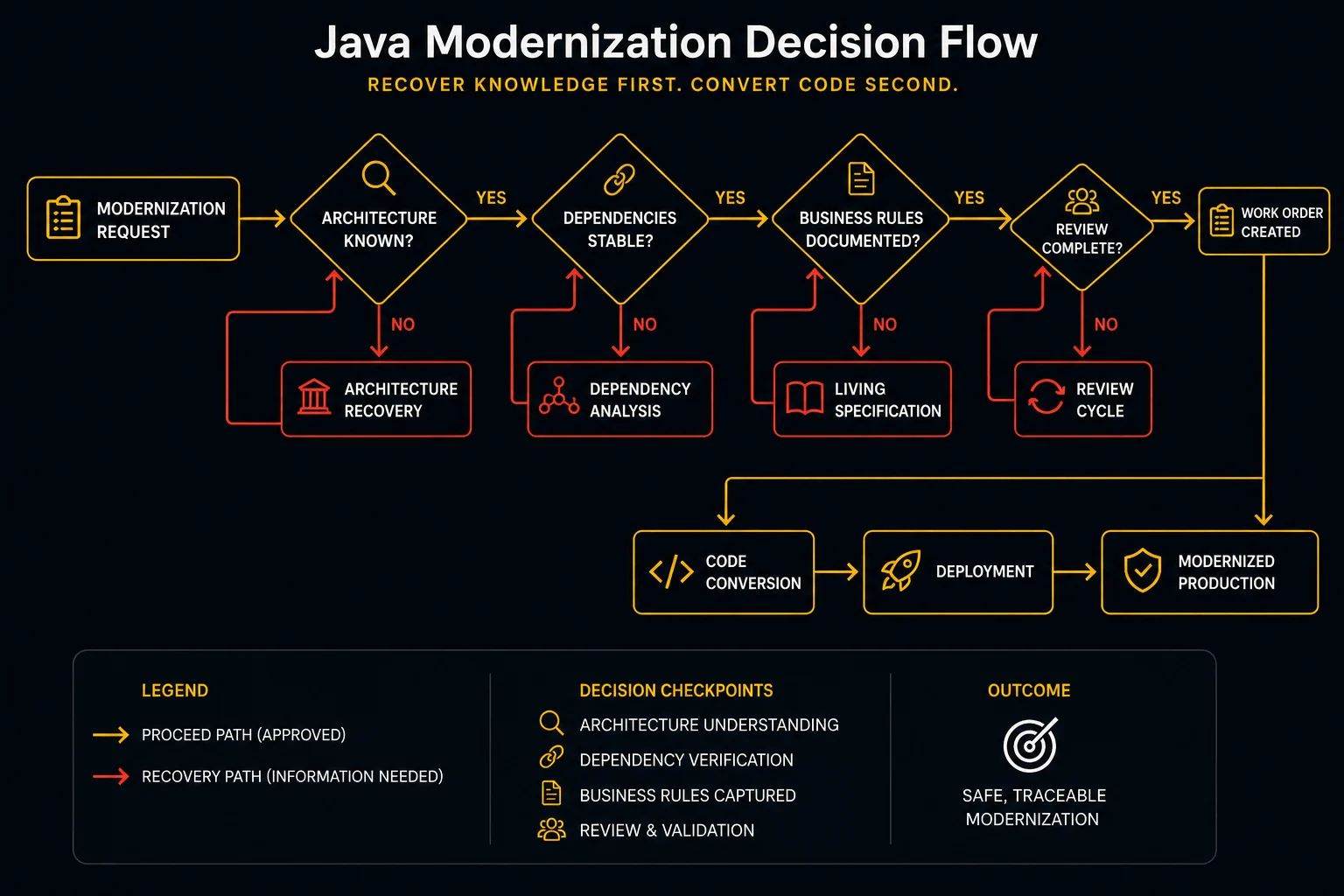

Trace the left side of the tree first because it represents the engineering path that reaches implementation. The recovery branches aren’t failures; they indicate information the team still needs before converting production code.
Java Modernization Decisions Depend More On Context Than Code
Begin modernization only after architectural understanding reaches the point where every significant implementation change stays traceable to documented intent. Short of that, faster execution just produces faster rework, dressed up as progress until the first production incident proves otherwise.
This article covered where Java modernization risk concentrates: static analysis that misses business context, framework upgrades that pass a build but fail at runtime, architectural drift between teams working the same monolith in parallel, and AI-generated code that forgets decisions made two sessions ago. It also covered how governance, Living Specifications, Work Orders, and traceable review gates turn a migration percentage into a number worth trusting. None of that replaces engineering judgment. It gives that judgment somewhere durable to live.
FAQs
What Is The Best Strategy For Modernizing A Large Java Application?
There’s no single best strategy independent of the application. High-value, low-complexity modules suit incremental extraction; core systems with deep dependency chains usually need architecture recovery and a phased approach before any code changes.
Should You Upgrade Java Versions Before Splitting A Monolith?
Generally yes for the JDK baseline, since frameworks like Spring Boot 3 require Java 17 regardless of architecture. Splitting the monolith itself should wait until dependency mapping and business-rule discovery are complete.
How Long Does Enterprise Java Modernization Usually Take?
Duration depends on dependency depth, test coverage, and compliance scope rather than lines of code. Large portfolios typically run in phases over many months, with high-value, low-complexity applications migrated first to validate the approach.
How Do Teams Verify Business Logic After Java Modernization?
Behavioral regression testing, not structural testing, catches business-logic defects: capture production input and output pairs, replay them against the modernized system, and treat any divergence, including rounding differences, as a defect requiring investigation.
